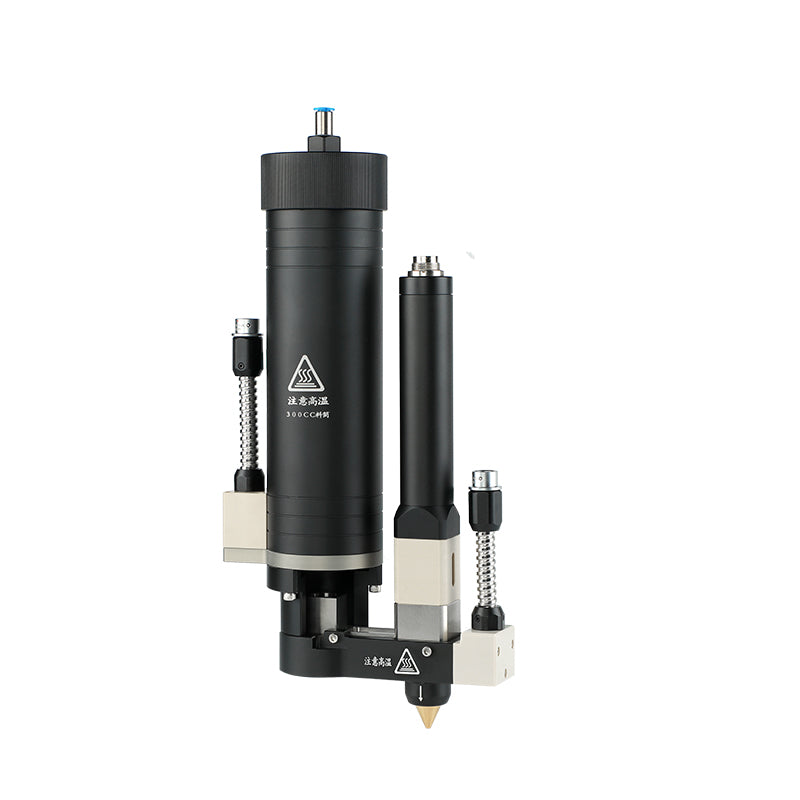

300cc Hot melting glue Screw valve

300cc Hot melting glue Screw valve

Regular price ¥28,000.00
Regular price Sale price ¥28,000.00
Sale Sold out
样式
S5830  300cc hot melt adhesive precision screw valve, driven by custom brushless servo motor, can provide high torque
Efficient transmission ratio, this product uses precision-grade tungsten steel screw components, which can effectively ensure the accuracy of dispensing, and at the same time
The maintenance is very simple, and the disassembly and assembly of the screw assembly can be completed quickly.
Products are widely used in: STM industry, optoelectronic industry, 3C digital product industry, connector industry,
Photoelectric industry, etc., applicable fluids include: PUR hot melt adhesive, PUH hot melt adhesive, and other high temperature sol fluids.
Features:
Drive: precision brushless servo motor drive
Fast commissioning: Adopt the latest modular design to simplify the tungsten steel screw assembly.
High efficiency: adopt efficient screw conveying mode to effectively improve production efficiency
Long life: Replaceable superhard alloy screw components have a longer service life.
Large flow rate: large screw pitch feeding, multiple screw pitch options, efficient fluid delivery.
Simple maintenance: Modular tungsten steel screw assembly can realize quick disassembly and assembly.
Low cost: Patented design structure, only a small amount of consumables are needed for maintenance, saving maintenance costs during the production process.
Stability: adopts the method of screw conveying fluid, long-term stable dispensing.

Large flow screw valve specifications:
Dispensing method: contact dispensing mode
Applicable liquid type: PUR, PUH, hot melt adhesive, high temperature dissolving fluid, etc.
Applicable liquid viscosity: 10000 - 2000000 cps
Working frequency: Max: 400 rpm
Applicable needle types: steel needles, customized needles
Glue supply air pressure: Glue pressure: 0.01-1Mpa
Heating temperature: Valve body Max: 200°C Glue bucket Max: 150°C
Body mass: 1000g
Dimensions: L160mm*W75mm*H335mm

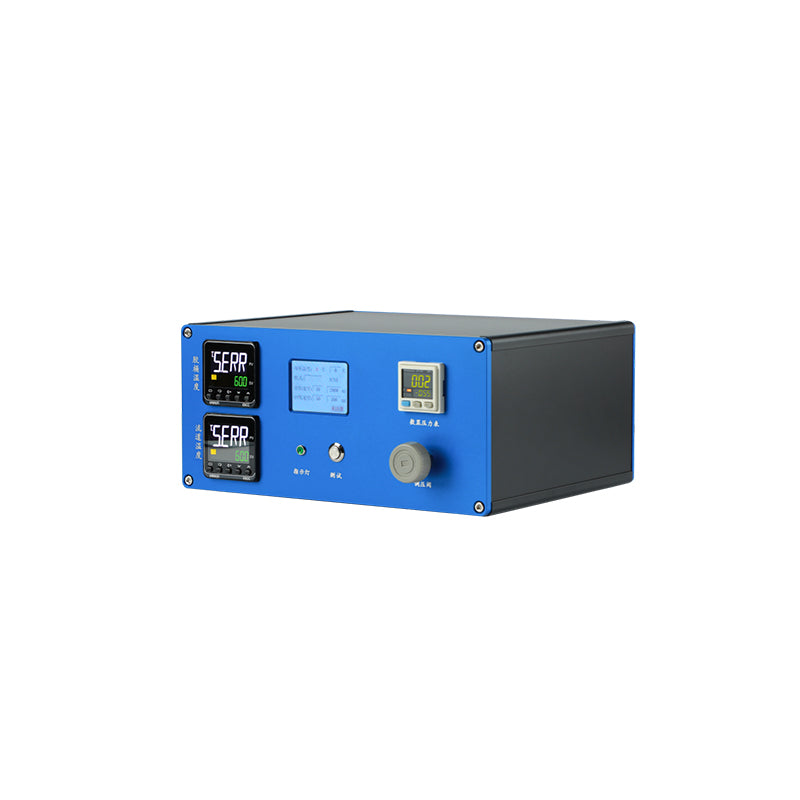

Controller Specifications:
ontrol method: single-chip embedded system
Dispensing time control: digital circuit/parameterization
Power supply/power: AC220V/50Hz*120W
Controller mass: 2kg
Dimensions: L280mm*W240mm*H120mm

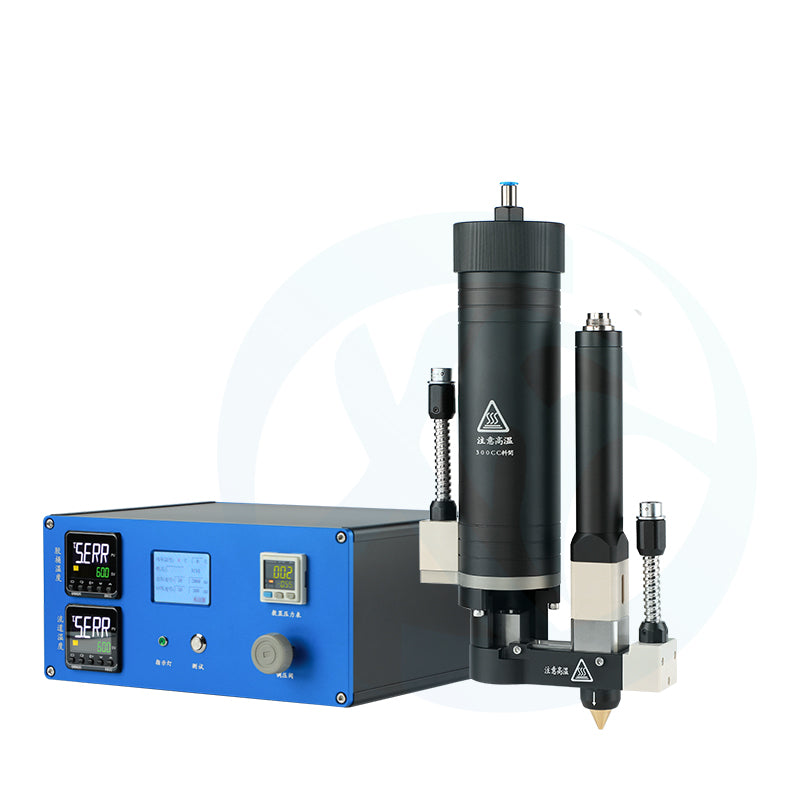

component:
Screw valve body
controller
Screw assembly
connection cable
maintenance tool
