300ML hot melt adhesive piezoelectric jet valve

300ML hot melt adhesive piezoelectric jet valve

Regular price ¥27,000.00
Regular price ¥27,000.00 Sale price ¥27,000.00
Sale Sold out
样式
Introduction to piezoelectric valves:
S3000 series 300CC piezoelectric valve is driven by high frequency precision piezoelectric ceramic material, so that Tappets can do up and down rapid reciprocating movement.
To achieve the high speed of hot melt adhesive, due to the piezoelectric ceramic material reaction speed, high precision, excellent stability, compared to compression
Air as the driving force of the pneumatic valve, eliminate the instability caused by air source pressure fluctuations, the stability of the piezoelectric ceramic valve

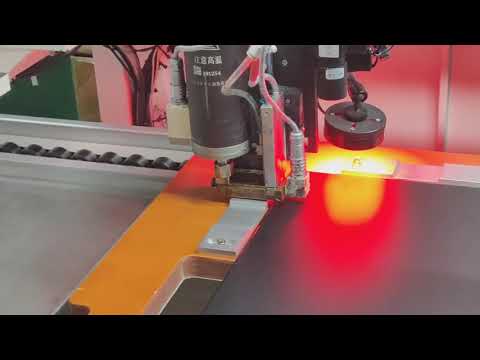

The characteristics are more obvious, the valve body is suitable for: mobile phone frame hot melt adhesive, TWS Bluetooth headset, smart bracelet and other high temperature fluids.
Product features:
High speed: The latest precision piezoelectric driver, ultra-fast dispensing frequency, limit up to 1500Hz per second.      Fast debugging:Using the latest module design, simplify the debugging method of Tappets, and fast top calibration.      High efficiency: non-contact dispensing eliminates Z-axis movement and effectively improves production efficiency
      Long life:  Replaceable superhard alloy nozzles and Tappets for longer service life.
      microquantity: : The minimum glue amount is 0.5nl, the minimum line width is 0.25mm, the minimum point diameter is 0.2mm.
  Uniformity: :Set double constant temperature heating module, high speed valve dispensing consistency up to ±2%.
   Simple maintenance:integrated runner design, minimalist full module heating module assembly, can be quickly disassembled.
    Stability:Tappets travel is small, strong, can effectively prevent the nozzle glue hanging and scattering phenomenon.
Piezoelectric valve specifications:
Dispensing mode: non-contact dispensing mode
Suitable for liquid types: PUR, PUH and other high temperature dissolved fluids
Applicable liquid viscosity: 0-200000 cps
Operating frequency: Max: 1200 Hz
Applicable nozzle type: Integrated nozzle: 0.05-0.3mm
Glue pressure: glue pressure: 0.01-0.2Mpa
Valve body mass: 1000g
Dimensions: L145mm*W122mm*H318mm

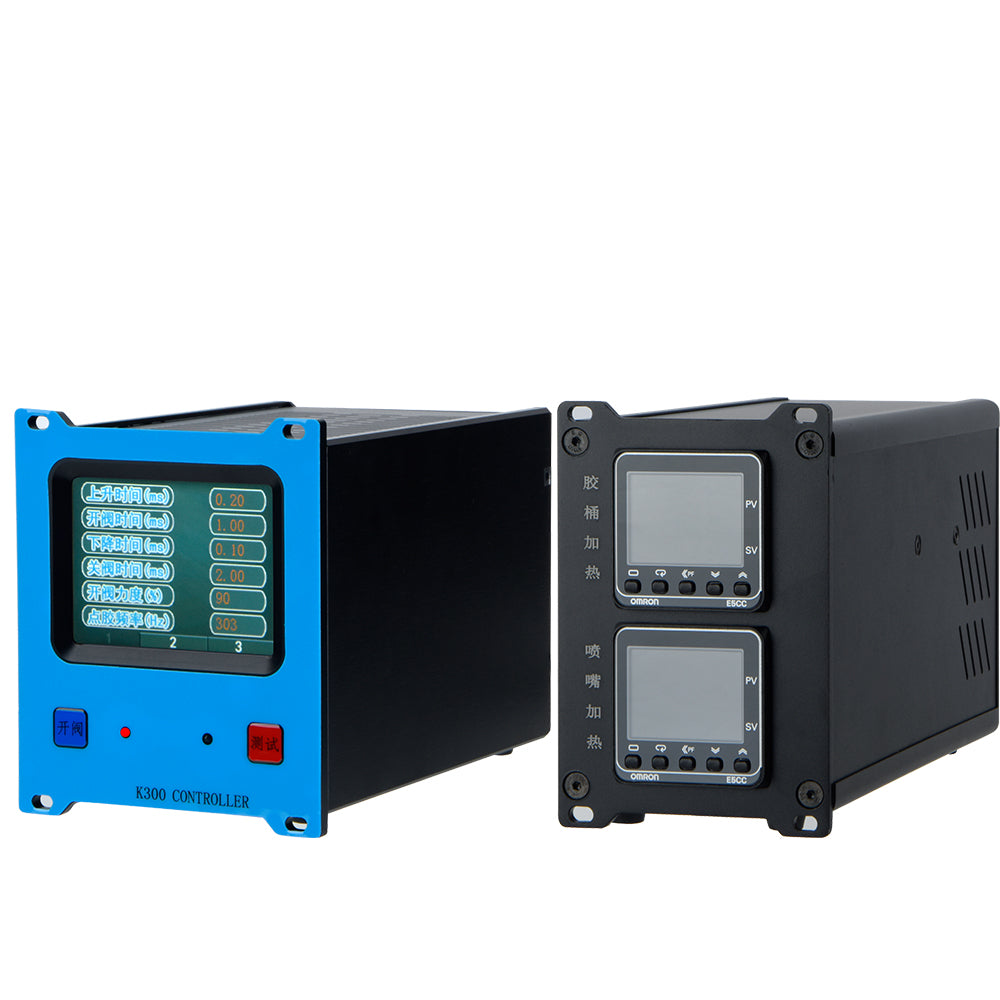

Controller specifications:
Control mode: electronic analog circuit
Dispensing time control: digital circuit/parameterization
Power supply: AC220V/50Hz*120W
Controller weight: 4kg (including dual temperature control power: 150W)
Dimensions: L203mm*W120mm*H128mm
Dual temperature controller size: L206mm*W85mm*H128mm

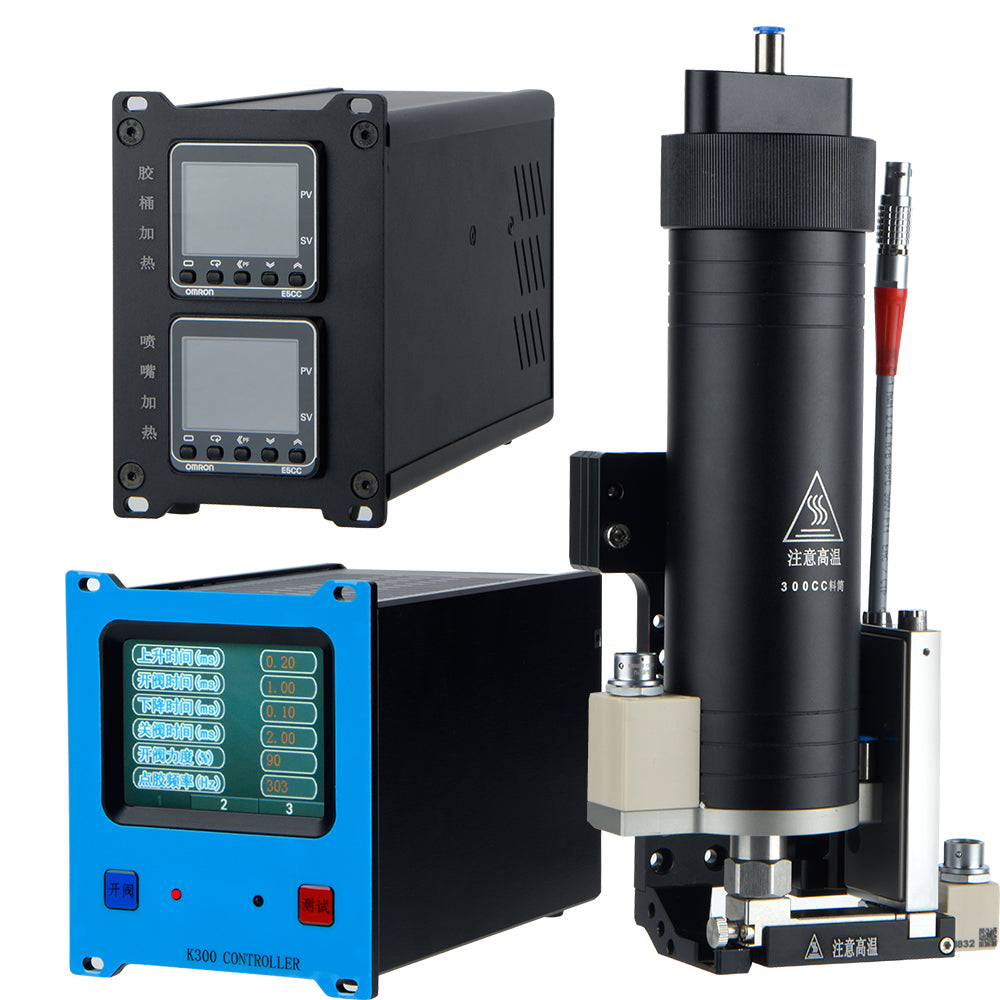

Components:

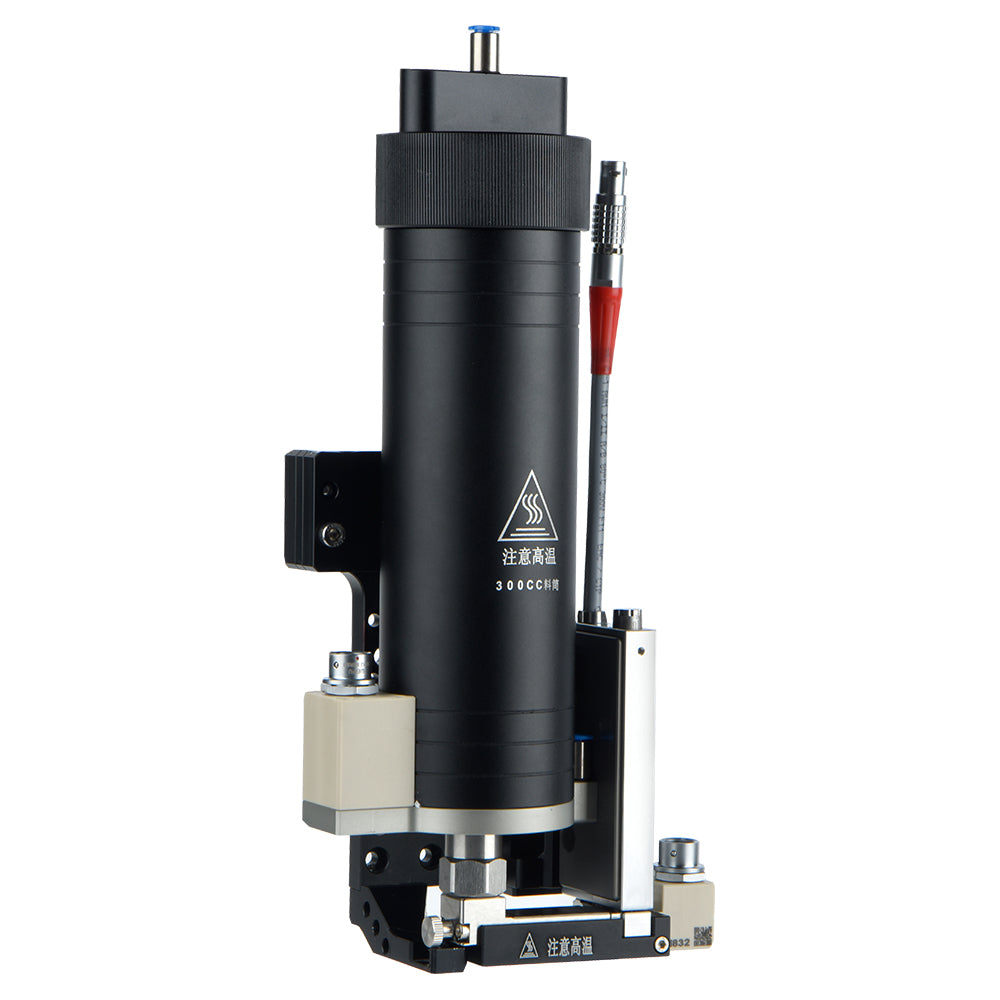

  • Piezoelectric valve body
  • Piezoelectric controller
  • Nozzle heating module
  • Valve body connection cable
  • Dual temperature controller
  • Heating cable
  • Debugging tool
Maintenance tool
