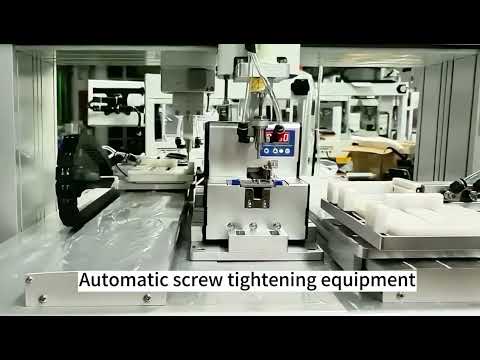

Robotic Screw Tightening Machine

Robotic Screw Tightening Machine

Regular price ¥32,000.00
Regular price Sale price ¥32,000.00
Sale Sold out
样式
This section describes the device brand configuration
Taiwan on silver rail
Italian Irate synchronous belt
Closed-loop servomotor
Aluminum profile die casting frame
Japanese Omron relay
Taiwan Mingwei power supply
Servo batch
Red wave metal switch
Control card screw machine control system
Taiwan ADke electrical parts
Analysis of the working principle of the screw adsorption machine
1.The adsorption automatic locking screw machine relies on the vacuum generated by the vacuum generator to adsorb, that is, the adsorption force generated by the screw through the compressed air of the electric batch head, remove a single screw (or use magnetic suction), and then run and locate the product hole, and the electric batch will automatically lock into the product;
2. The screw efficiency is related to the size of the lock product and the length of the screw;
3. Generally 0.8-2S/Pcs lock with a screw.
Adsorption lock screw and product requirements
Product: After the screw is locked down, there is no obstacle within 0.5mm around the screw cap, and the screw head and the product will have plane contact, so enough space should be left.
Our equipment advantages:
1. Imported accessories, stable and durable: closed loop servo motor, servo batch, Taiwan silver guide rail, Taiwan TBI screw, Japan Omron Optoelectronics, Italy Iratai belt, Taiwan Mingwei power supply, Ray driver, red wave switch, Taiwan ADke electrical parts;
2. Motion control card + handheld box display control, Chinese and English switch
Device action description:
First, manually put the product into the Y1 fixture, press the start button, automatically start to lock the product;
Second, manually put the new product into the Y2 fixture, press the start button, wait for the lock payment, Y1 product lock payment is completed, automatically start to lock the Y2 product;
Third, when the equipment locks the Y2 product, the Y1 product is taken out manually and put into the new product, waiting for the lock payment;
Fourth, the above cycle, the equipment around the cycle lock product, equipment non-stop high efficiency, manual need not wait.
