Semi-automatic glue filling machine

Semi-automatic glue filling machine features:

• cylinder is equipped with high and low level sensor, automatic alarm of lack of material
• The static or dynamic mixer forces the mixing mode to make the mixing effect more uniform
• Scale adjustment Touch between the fingers, allowing the operator to easily adjust the required scale
• The spitting speed and the spitting amount can be set, and the spitting amount is stable without dripping or leaking
• A variety of optional functions to adapt to different glue filling process needs

This model can be selected 30L, 20L, 15L cylinder, can be matched with any stroke three-axis manipulator and SCARA multi-joint robot hand
Overall dimensions (length * width * height) : 1060mm*550mm*1310mm
Power input: AC110V-AC220V
Power output: DC24V 14.6A
Air source pressure: 0.4-0.6Mpa.
Temperature: 0-40℃
Pump body: According to the customer's glue characteristics and the amount of glue required to select the pump body, can achieve continuous glue spitting.


Parameter configuration table:
Device name	Semi-automatic glue filling machine
Equipment type	3030
Working mode	Automatic ratio, continuous/single quantitative glue/pulse control
Control system	Taiwan original FATEK PLC+ touch screen (digital input)
Discharge range	≥1g to unlimited
A metering pump	Precision wear-resistant 0.3cc-12cc screw pump or gear pump
B Metering pump	Precision wear-resistant 0.3cc-12cc screw pump or gear pump
Spitting accuracy	±0.05(10g per discharge)
Matching accuracy	±0.03(10g per discharge)
Measurement accuracy	±0.05(10g per discharge)
Discharge velocity	0.5g/S - 10g/S
Ratio range	(Large amount of glue can be customized according to customer products)
Hybrid mode	100:100 to 100:10 (A:B)
Main agent (A)	Precision static/dynamic mixer
	30L\SUS304\ Upper and lower liquid level alarm
Hardening agent (Agent B)	Function: constant temperature device \ cylinder mixing \ automatic feeding
Metrology department	Optional: vacuum, automatic feeding

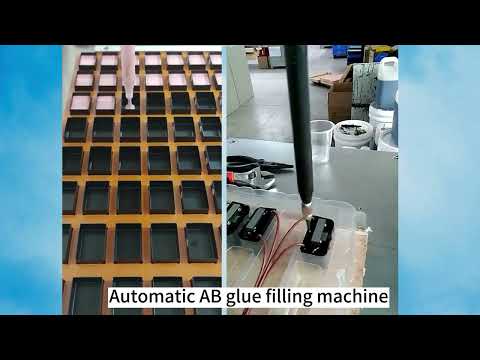

Scope of application: This equipment is suitable for two-component AB glue mixed perfusion and potting.
