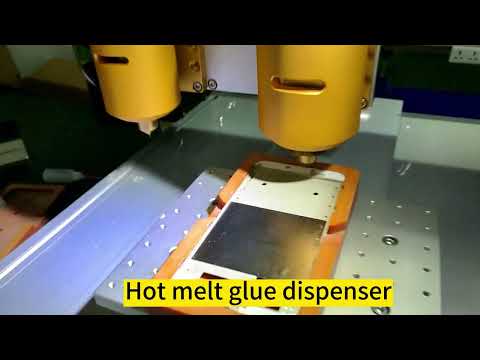

Three axis hot melt automatic dispensing machine

Three axis hot melt automatic dispensing machine

Regular price ¥15,000.00
Regular price Sale price ¥15,000.00
Sale Sold out
样式
Product structure
The three-axis hot melting dispensing machine is made of fast heater + precision temperature control device + three-axis dispensing movement platform to achieve true thermostatic glue heating, uniform glue, accurate temperature control and high production efficiency. Brand Yudian temperature control monitoring temperature, at a glance.
Product configuration
Taiwan on silver rail
Japan Shinano motor
Italian Irata belt
Taiwan Mingwei power supply
Japanese Omron relay
Red wave metal switch
Open model material independently
  1. Special hot melting glue head, uniform glue, break the glue simply, no wire drawing; Yudian temperature controller, imported heating core, fast heating, temperature deviation is less than 2 degrees
  2. Aluminum profile casting structure, solid, beautiful, temperature, high precision
  3. MCU control + handheld box programming, simple and practical, complete functions, efficient use
  4. Shino motor, silver guide rail, research control driver, red wave switch, high configuration parts, durable
Model number Three axis hot melt automatic dispensing machine
Dispensing range X/Y/Z(mm) 300/300/100
Programming mode Teach programming or graphic import
Movable graphic trajectory Point, line, arc, circle, curve, multi-segment line, helix, ellipse
Dispensing head Special hot melt dispensing head
Glue dispenser 30ml PUR hot melt dispensing head
Minimum discharge 0.01 ml
Glue production frequency 1-10 times/second
Maximum load 10kg
Moving speed (mm/sec) 0-500
repeatability ± 0.02mm
Control mode MCU + handheld box
Number of program records Group 999
Display mode LCD teaching box
Motor system Japan Shinano motor
driver Study and control
rail Shangyin Taiwan
Photoelectric switch Japanese Omron
Transmission mode Italian Irate synchronous belt
Input power supply Full voltage AC110V ~ 220V
External control interface RS232
Overall dimension 440 * 480 * 650
