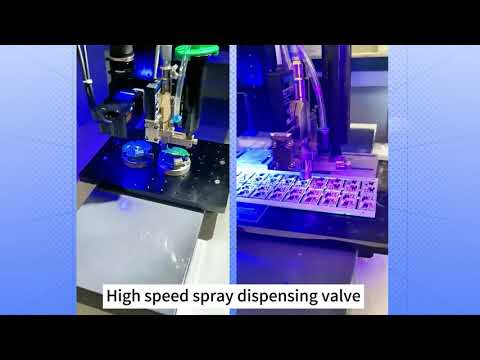

High speed spray dispensing valve

High speed spray dispensing valve

Regular price ¥12,000.00
Regular price ¥15,000.00 Sale price ¥12,000.00
Sale Sold out
样式
The 6000S pneumatic injection valve is a type of valve that uses compressed air as the driving force,Make the Tappets move up and down quickly,Make the Tappets move up and down quickly,Realize high-speed injection of glue, specifically designed for high-speed and precise electronic dispensing, which can achieve precise spraying on the surface of the workpieceMicro glue point application (accurate to micro liters) has characteristics that are not affected by warping, deformation, unevenness, or fragile products of the workpieceThe surface achieves non-contact precision adhesive spraying, suitable for PCB board packaging, 3C electronic product production, LED optoelectronics industry,FPC flexible circuit board production, trace paint ink filling, biological or medical reagent validation, etc.
Product Features:
High speed: High speed dispensing frequency, up to 250Hz per second.
Quick debugging: Adopting the latest module design to simplify the debugging method of the firing pin.
High efficiency: Adopting non-contact dispensing to eliminate Z-axis movement and effectively improve production efficiency
Long service life: replaceable superhard alloy nozzle and striker, with a longer service life.
Micro amount: minimum adhesive amount 0.5nl, minimum line width 0.3mm, minimum point diameter 0.3mm.
Consistency: Set a constant temperature heating module, and the consistency of the high-speed injection valve dispensing can reach ± 3%.
Easy maintenance: disposable inlet hose design, minimal spare parts, quick disassembly and quick maintenance.
Low cost: Patented design structure, requiring only a small amount of consumables for maintenance, saving maintenance costs during the production process.
Stability: The spraying force is strong, which can effectively prevent the phenomenon of bubbles and scattered points.
Specification of pneumatic injection valve:
Dispensing method: non-contact dispensing mode
Suitable for liquid types: bottom filling adhesive, UV adhesive, epoxy adhesive, silicone, red adhesive, etc
Applicable liquid viscosity: 0-200000 cps
Working frequency: Max: 250 Hz
Applicable nozzle type: integrated nozzle: 0.05-0.3mm
Glue supply pressure: Glue pressure: 0.01-0.2Mpa
Valve body mass: 600g
External dimensions: L45mm * W122mm * H148mm
Controller specifications:
Control method: electronic analog circuit
Glue dispensing time control: digital circuit/parameterization
Power supply/power: AC220V/50Hz * 80W
Controller mass: 4kg
External dimensions: L213mm * W165mm * H103mm
Components:
Pneumatic injection valve
Controller
Nozzle heating module
Valve body connecting cable
Maintenance tools
